<%NUMBERING1%>.<%NUMBERING2%>.<%NUMBERING3%> PRTG Manual: Channel Settings

Name

Enter a name for the channel. The name appears in graphs and tables.

You can automatically add the sensor's ID to the name by using the placeholder [#id].

You cannot edit the name for script sensors after sensor creation.

If the name contains angle brackets (<>), PRTG replaces them with braces ({}) for security reasons. For more information, see the Knowledge Base: What security features does PRTG include?

Unit

This setting is only visible for custom sensors.

Enter the unit for the values that this sensor returns. Enter a string.

PRTG uses the unit string for display purposes and shows it in graphs, data tables, and gauges.

Scaling Multiplication

This setting is only visible for channels with a custom unit.

If you want to multiply the received raw data by a certain value, enter the multiplier. Otherwise, use the default value 1 to not change the received value. Enter an integer.

For example, the following sensors provide the scale factor for received values with custom units in their settings:

• Sensor Factory sensor (you can use multiplication and division in the channel definition)
• SNMP APC Hardware sensor
• SNMP Custom sensor
• SNMP Custom v2 sensor
• SNMP Dell Hardware sensor
• WMI Custom sensor

If the channel uses lookups, the scale factor does not modify the values that are defined in the lookups. Any applied lookup always uses the raw value as it is retrieved from the target device. If you use a scale factor for such a channel, you notice the scaling in data graphs, but the channel value appears unmodified in data tables.

Scaling Division

This setting is only visible for channels with a custom unit.

If you want to divide the received raw data by a certain value, enter the divisor here. Otherwise, use the default value 1 to not change the received value. Enter an integer.

For example, the following sensors provide the scale factor for received values with custom units in their settings:

• Sensor Factory sensor (you can use multiplication and division in the channel definition)
• SNMP APC Hardware sensor
• SNMP Custom sensor
• SNMP Custom v2 sensor
• SNMP Dell Hardware sensor
• WMI Custom sensor

If the channel uses lookups, the scale factor does not modify the values that are defined in the lookups. Any applied lookup always uses the raw value as it is retrieved from the target device. If you use a scale factor for such a channel, you notice the scaling in data graphs, but the channel value appears unmodified in data tables.

ID

Shows the ID of the channel. PRTG uses it for unique identification. For example, you need the ID for Sensor Factory sensors.

There are a few special, fixed channel IDs.

• -1 is for sum channels of traffic sensors (for example, of the SNMP Traffic sensor).
• -4 is for the Downtime channel (you can use it, for example, for an uptime percentage calculation in a Sensor Factory sensor).
• -2 (coverage) and -3 (error) are internally used.

This setting is for your information only. You cannot change it.

Limits

This setting is not available for custom channels.

Define if you want to set limits for this channel:

• Disable limits: Do not use the channel data to define the sensor status.
• Enable alerting based on limits: Define limits for the numeric values that are returned by the device. The sensor of which this channel is a part of shows the Warning status or the Down status when limits fall below the defined value or when limits are exceeded.

The channel can affect the status of the sensor that it is a part of. By setting limits, you can define when the sensor shows the Warning status or the Down status, depending on the channel data. For example, you can use limits to set a traffic sensor (that is usually never in the Down status) to show the Down status when the monitored values reach critical limits.

Enable alerting based on limits is not available for the Downtime channel.

You can show limits in graphs (highlighted in yellow or red) if you select exactly one channel with a limit in a graph.

Lookups and Limits

This setting is only available for custom channels.

Define when the sensor shows the Down status and alerts you, either based on the lookup definition or based on limits for returned values:

• Enable alerting based on lookups: Use the lookup definition of the channel to define the sensor status. Make sure that the channel uses a proper Lookup if you use this option. Select the lookup file either in the channel settings or in the sensor settings, depending on the sensor. If you do not want to use the channel data to define the sensor status, select None as Lookup.
• Enable alerting based on limits: Define limits for numeric values returned by the device. The sensor of which this channel is a part of shows the Warning status or the Down status when limits fall below the defined value or when limits are exceeded.

Only the option you choose applies. If you choose limit-based alerting, errors and warnings that you have defined in the lookup file do not apply.

Lookup

This setting is only visible for custom sensors and if you select lookups-based alerting.

Select the lookup file that you want to use with this channel.

Do not use this option for sensors that provide the unit Lookup in the sensor settings. The channel setting is overwritten with the next sensor scan. Define the lookup file that you want to use with this channel on the Settings tab of the sensor. Select the option Lookup for the setting Channel #x Unit (where x is the number of the channel) and define the desired lookup file under Channel #x Lookup. See section Define Lookups for affected sensors.

If you choose None, alerting by lookups and limits is disabled and channels do not appear as lookups. If you want to keep the lookup representation without alerting, define the states accordingly in the lookup file.

Upper Error Limit ([unit])

This setting is only visible if you select Enable alerting based on limits above.

Specify an upper limit for the Down status. If the channel values exceed this value, the sensor shows the Down status. Enter a valid number into at least one of the limit fields.

The value that you enter here must match the type of value that the device returns, either an integer or a float. See also Absolute Values and Delta Values for Limits.

While a sensor shows the Down status because of a limit, it still receives data in its channels.

Upper Warning Limit ([unit])

This setting is only visible if you select Enable alerting based on limits above.

Specify an upper limit for the Warning status. If the channel values exceed this value, the sensor shows the Warning status. Enter a valid number into at least one of the limit fields.

The value that you enter here must match the type of value that the device returns, either an integer or a float. See also Absolute Values and Delta Values for Limits.

Lower Warning Limit ([unit])

This setting is only visible if you select Enable alerting based on limits above.

Specify a lower limit for the Warning status. If the channel values fall below this value, the sensor shows the Warning status. Enter a valid number into at least one of the limit fields.

The value that you enter here must match the type of value that the device returns, either an integer or a float. See also Absolute Values and Delta Values for Limits.

Lower Error Limit ([unit])

This setting is only visible if you select Enable alerting based on limits above.

Specify a lower limit for the Down status. If the channel values fall below this value, the sensor shows the Down status. Enter a valid number into at least one of the limit fields.

The value that you enter here must match the type of value that the device returns, either an integer or a float. See also Absolute Values and Delta Values for Limits.

While a sensor shows the Down status because of a limit, it still receives data in its channels.

Error Limit Message

This setting is only visible if you select Enable alerting based on limits above.

Enter an additional message. PRTG adds it to the sensor message when the sensor shows the Down status. Enter a string or leave the field empty.

Warning Limit Message

This setting is only visible if you select Enable alerting based on limits above.

Enter an additional message. PRTG adds it to the sensor message when the sensor shows the Warning status. Enter a string or leave the field empty.

Graph Rendering

Select if you want to show this channel in data graphs:

• Show in graphs: Sensor graphs contain the data of this channel.
• Hide in graphs: Sensor graphs do not contain data of this channel.

If you choose to hide this channel in graphs, it also does not appear in the graphs of reports or maps.

For more information about data graphs, see the Knowledge Base: What options do I have to review my monitoring data in detail?

Table Rendering

Select if you want to show this channel in data tables:

• Show in tables: Sensor data tables contain the data of this channel.
• Hide in tables: Sensor data tables do not contain the data of this channel. This option hides the gauge as well, but the channel is still available in the data table of the sensor's Overview tab.

If you choose to hide this channel in data tables, PRTG also does not use it for the calculation of the Total channel of a sensor. It also does not appear in data tables of a report.

For more information about data tables, see the Knowledge Base: What options do I have to review my monitoring data in detail?

Line Color

Select the color of the channel display in graphs:

• Automatic: PRTG automatically sets the color of this channel in graphs.
• Manual: Individually define the color of this channel. You can enter the desired color code below.

Color (#rrggbb)

This setting is only visible if you select Manual above.

Enter a color in hexadecimal notation as in .html and .css files, or choose a color from the visual color selector. The field with the hexadecimal color value automatically changes to the color you select.

Line Width

Enter the width of the channel line in graphs. Enter an integer in pixels. The maximum line width is 25, but we recommend that you only use values between 1 and 7 to get optimal results.

Data

This setting is available for most channels. Define how to display data:

• Display actual values in [unit]: Display the values in the shown unit.
• Display in percent of maximum: Calculate and show percent values based on a maximum value. Enter a maximum below.
  If you choose this option, you cannot display the data of traffic sensors as a positive and negative area graph.

  If you choose this option, values in the Limits section are counted as percent values.

Maximum ([unit])

This setting is only visible if you select Display in percent of maximum above.

Enter a value to use as the maximum. Consider the unit. PRTG calculates all percent values based on this value. Enter an integer.

Value Mode

This setting is only available for channels that return absolute values.

Define which value type you want to display in historic data graphs and tables:

• Average: The channel shows average values.
• Minimum: The channel shows the minimum values.
• Maximum: The channel shows the maximum values.

This setting is not available for sensors that show difference values, such as traffic channels.

For more information about value modes, see the Knowledge Base: What is the Value Mode in channel settings?

Decimal Places

Define how many decimal places of the channel's data that you want to display in graphs and tables:

• Automatic: PRTG automatically defines how many decimal places to use for optimal viewing results.
  PRTG rounds values between 10 and –10 to two decimal places. It rounds values that are very close to an integer to the integer, for example, it rounds 3.001 to 3.
• All: Display all available decimal places.
• Custom: Manually define the number of decimal places. If you choose this option, an additional field appears. Enter an integer.

Spike Filter

You can use a spike filter to correct faulty monitoring data. Sometimes, sensors report values that are enormously high or far too low. This can be because of an error in data transmission, or because of incompatibilities of the physical device you are monitoring. This can make graphs unreadable. A spike filter can compensate for these flaws.

Define if you want to filter incoming data:

• Disable filtering: Display all data as it is received. Do not filter out spikes.
• Enable filtering: Enable a filter to remove spike values. PRTG disregards values that are above and below a certain limit in the monitoring data for graphs and tables. Additional fields appear below.
  This does not change monitoring data itself but only the presentation of the data. This setting is valid for all data of this channel, including historic data.

Use the spike filter with care. For overflow values in SNMP sensors, check the SNMP Compatibility Options before.

The spike filter option is not available for the channel Downtime.

Spike Filter Max. Value ([unit])

This setting is only visible if you select Enable filtering above.

Enter the maximum value to show in the channel data. PRTG disregards all data above this value in graphs and tables. Enter an integer or leave the field empty.

Spike Filter Min. Value ([unit])

This setting is only visible if you select Enable filtering above.

Enter the minimum value to show in the channel data. PRTG disregards all data below this value in graphs and tables. Enter an integer or leave the field empty.

Vertical Axis Scaling

Define how to display the vertical axis for the channel in graphs:

• Automatic scaling: PRTG automatically uses the optimum scaling. Usually the scaling ranges from the minimum to the maximum value. PRTG uses one single scale for each unit label only.
• Manual scaling: Manually define the scaling. Additional fields appear below. If you define manual axis scaling, it can make low values better visible in your graph, but it might result in a graph with multiple vertical axes for the same unit label.

PRTG ignores settings for this option if you select Stack channels on top of each other under Graph Type on the sensor's Settings tab.

Vertical Axis Maximum ([unit])

This setting is only visible if you select Manual scaling above.

Enter the maximum value to use on the vertical axis for the channel. Enter an integer.

Vertical Axis Minimum ([unit])

This setting is only visible if you select Manual scaling above.

Enter the minimum value to use on the vertical axis for the channel. Enter an integer.

Absolute values

For channels that measure absolute values, for example, for free disk space, you must set limits with absolute values like 20.

Delta values

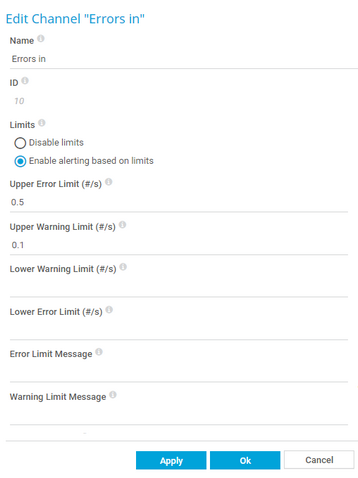

For channels that measure delta values, that is, measurements per second (x.xx/sec), you must set delta values according to the formula number of errors/scanning interval in seconds.

Channel

The name of the channel.

ID

The ID of the channel.

This setting is for your information only. You cannot change it.

Last Value

The most recent value of the channel recorded by the sensor.

Minimum

The lowest historic value recorded by the sensor.

Maximum

The highest historic value recorded by the sensor.
