The jFlow v5 sensor receives traffic data from a jFlow v5-compatible device and shows the traffic by type. This sensor has several filter options to divide traffic into different channels.
Make sure that the sensor matches the jFlow version that your device exports.
jFlow v5 Sensor
For a detailed list and descriptions of the channels that this sensor can show, see section Channel List.
Sensor in Other Languages
Dutch: jFlow v5
French: jFlow v5
German: jFlow v5
Japanese: jFlow v5
Portuguese: jFlow v5
Russian: jFlow v5
Simplified Chinese: jFlow v5
Spanish: jFlow v5
Remarks
Consider the following remarks and requirements for this sensor:
Remark
Description
Performance impact
This sensor has a very high performance impact. We recommend that you use no more than 50 of this sensor on each probe.
jFlow
This sensor requires that the jFlow export of the respective version is enabled on the target system. The target system must send the flow data stream to the IP address of the probe system.
Cluster probe
This sensor does not support cluster probes. You can only set it up on local probes or remote probes.
IPv4
This sensor only supports IPv4.
Clone sensor
If you clone this sensor to the same probe, PRTG keeps the selected IP addresses on which it listens for Flow (NetFlow, jFlow, sFlow, IPFIX) packets. If you clone this sensor to a different probe, PRTG selects all available IP addresses by default.
You cannot add this sensor to the hosted probe of a PRTG Hosted Monitor instance. If you want to use this sensor, add it to a remote probe device.
Basic Sensor Settings
Basic Sensor Settings
The sensor has the following default tags that are automatically predefined in the sensor's settings when you add the sensor:
bandwidthsensor
jflowsensor
For more information about basic sensor settings, see section Sensor Settings.

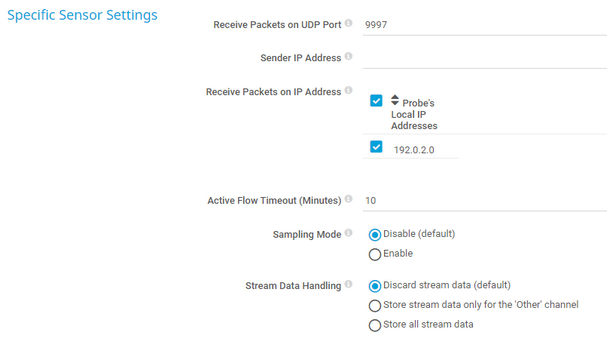

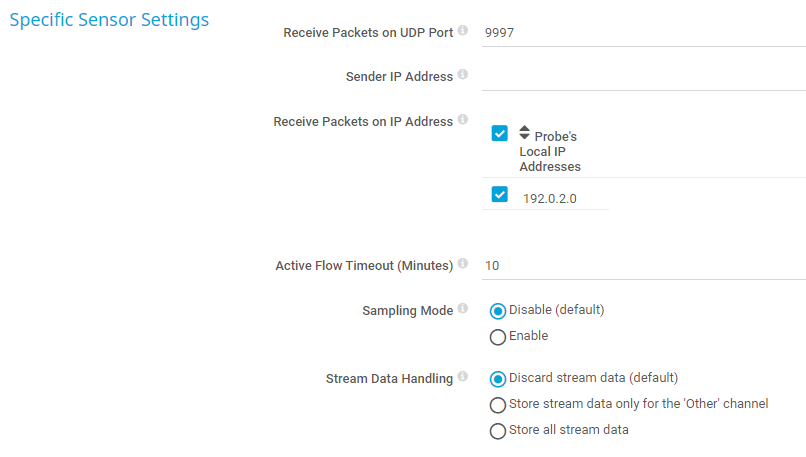

jFlow v5 Specific Settings
jFlow v5 Specific Settings
Setting
Description
Receive Packets on UDP Port
Enter the UDP port number on which PRTG receives the flow packets. It must match the UDP port number that in the jFlow export options of the hardware router device. Enter an integer.
When you configure the export, make sure that you select the appropriate jFlow version for this sensor.
Sender IP Address
Enter the IP address of the sending device that you want to receive the jFlow data from. Enter an IP address to only receive data from a specific device or leave the field empty to receive data from any device on the specified port.
Receive Packets on IP Address
Select the IP addresses on which PRTG listens to jFlow packets. The list of IP addresses is specific to your setup. To select an IP address, enable a check box in front of the respective line. The IP address that you select must match the IP address in the jFlow export options of the hardware router device.
When you configure the export, make sure that you select the appropriate jFlow version for this sensor.
Active Flow Timeout (Minutes)
Enter a time span in minutes after which the sensor must receive new flow data. If the timeout elapses and the sensor receives no new data during this time, it shows the Unknownstatus. Enter an integer. The maximum timeout is 60 minutes.
We recommend that you set the timeout one minute longer than the timeout in the hardware router device.
If you set this value too low, flow information might be lost.
Enable: Use the sampling mode and specify the Sampling Rate below.
This setting must match the setting in the xFlow exporter.
Sampling Rate
This setting is only visible if you select Enable above.
Enter a number that matches the sampling rate in the exporting device. If the number is different, monitoring results will be incorrect. Enter an integer.
Stream Data Handling
Define what PRTG does with the stream and packet data:
Discard stream data (default): Do not store the stream and packet data.
Store stream data only for the 'Other' channel: Only store stream and packet data that is not otherwise filtered and is therefore accounted to the default Other channel. PRTG stores this data in the \StreamLog subfolder of the PRTG data directory on the probe system. The file name is Streams Sensor [ID] (1).csv. This setting is for debugging purposes. PRTG overwrites this file with each scanning interval.
Store all stream data: Store all stream and packet data. This setting is for debugging purposes. PRTG overwrites this file with each scanning interval.
Use with caution. It can create huge data files. We recommend that you only use this setting for a short time.
Channel Configuration
Channel Configuration
Setting
Description

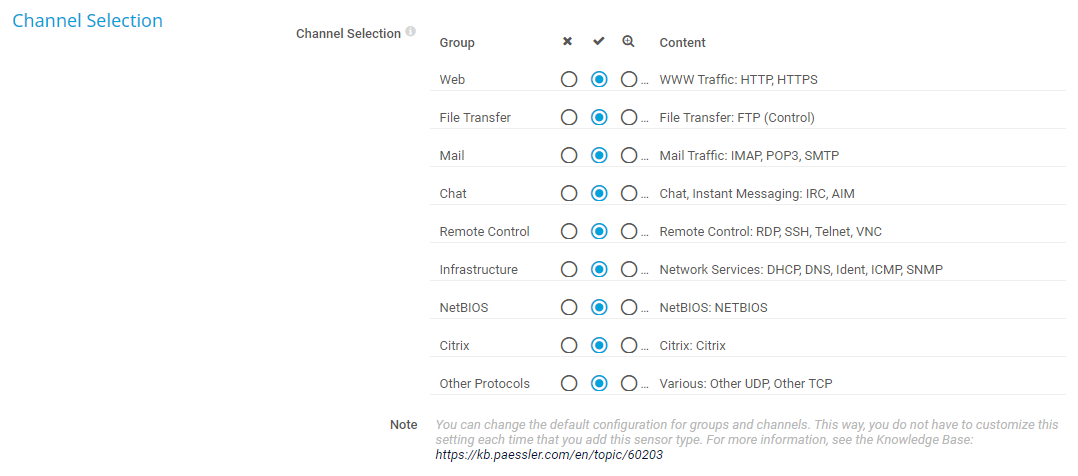

Channel Selection
Define the categories that the sensor accounts the traffic to:
Web: Internet web traffic.
File Transfer: Traffic from FTP.
Mail: Internet mail traffic.
Chat: Traffic from chat and instant messaging.
Remote Control: Traffic from remote control applications such as RDP, SSH, Telnet, and Virtual Network Computing (VNC).
Infrastructure: Traffic from network services such as DHCP, DNS, Ident, ICMP, and SNMP.
NetBIOS: Traffic from NetBIOS communication.
Citrix: Traffic from Citrix applications.
Other Protocols: Traffic from various other protocols via UDP and TCP.
For each group, you can select how many channels the sensor uses, that is, how detailed the sensor divides the traffic:
No (): Do not account traffic of this group in its own channel. The sensor accounts all traffic of this group to the default channel named Other.
Yes (): Count all traffic of this group and summarize it in one channel.
Detail (): Count all traffic of this group and further divide it into different channels. The traffic appears in several channels that you can see in the Content column. Extensive use of this option can cause load problems on the probe system. We recommend that you set specific, well-chosen filters for the data that you really want to analyze.

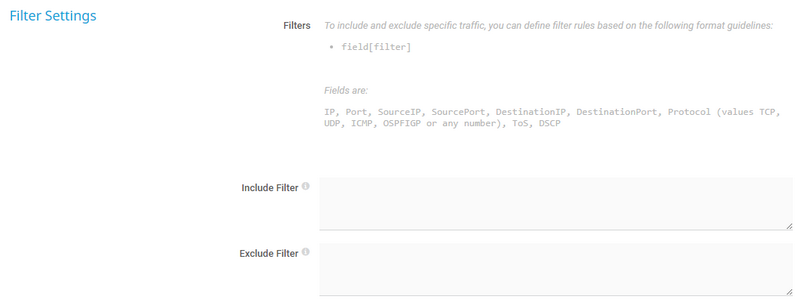

Define if you want to filter any traffic. If you leave this field empty, the sensor includes all traffic. To include specific traffic only, define filters using a special syntax.
Exclude Filter
First, the sensor considers the filters in Include Filter. From this subset, you can explicitly exclude traffic, using the same syntax.
Sensor Display
Sensor Display
Setting
Description
Primary Channel
Select a channel from the list to define it as the primary channel. In the device tree, PRTG displays the last value of the primary channel below the sensor's name. The available options depend on what channels are available for this sensor.
You can set a different primary channel later by clicking below a channel gauge on the sensor's Overview tab.
Graph Type
Define how this sensor shows different channels:
Show channels independently (default): Show a graph for each channel.
Stack channels on top of each other: Stack channels on top of each other to create a multi-channel graph. This generates a graph that visualizes the different components of your total traffic. You cannot use this option in combination with manual Vertical Axis Scaling (available in the channel settings).
Stack Unit
This setting is only visible if you select Stack channels on top of each other above.
Select a unit from the list. PRTG stacks all channels with this unit on top of each other. By default, you cannot exclude single channels from stacking if they use the selected unit. However, there is an advanced procedure to do so.
Primary Toplist
Primary Toplist
Setting
Description
Primary Toplist
Define which Toplist is the primary Toplist of the sensor:
Top Talkers
Top Connections
Top Protocols
[Any custom Toplists you add]
PRTG shows the primary Toplist in maps when you add a Toplist object.
Inherited Settings
By default, all of these settings are inherited from objects that are higher in the hierarchy. We recommend that you change them centrally in the root group settings if necessary. To change a setting for this object only, click under the corresponding setting name to disable the inheritance and to display its options.
For all Flow (NetFlow, jFlow, sFlow, IPFIX) and Packet Sniffer sensors, Toplists are available on the sensor's Overview tab. Using Toplists, you can review traffic data for small time periods in great detail.
Transmission Control Protocol (TCP), User Datagram Protocol (UDP), Internet Control Message Protocol (ICMP), Open Shortest Path First (OSPF), any number
ToS
Type of Service (ToS): any number
DSCP
Differentiated Services Code Point (DSCP): any number
The following filter rules apply to jFlow v5 sensors only.
Field
Possible Filter Values
Interface
Any number
ASI
Any number
InboundInterface
Any number
OutboundInterface
Any number
SenderIP
IP address of the sending device. Use this if you have several devices that send flow data on the same port, and you want to divide the traffic of each device into a different channel.
Possible values: IP address or DNS name
SourceASI
Any number
DestinationASI
Any number
Channel List
Which channels the sensor actually shows might depend on the target device, the available components, and the sensor setup.
Channel
Description
Chat
The traffic from chat and instant messaging (IRC, AIM)
Citrix
The traffic from Citrix applications
Downtime
In the channel table on the Overview tab, this channel never shows any values. PRTG uses this channel in graphs and reports to show the amount of time in which the sensor was in the Down status.
FTP/P2P
The traffic from file transfer (FTP/P2P)
Infrastructure
The traffic from network services (DHCP, DNS, Ident, ICMP, SNMP)
Mail
The internet mail traffic (IMAP, POP3, SMTP)
NetBIOS
The traffic from NetBIOS communication
Other
The traffic from various other protocols (UDP, TCP)
Remote Control
The traffic from remote control applications (RDP, SSH, Telnet, Virtual Network Computing (VNC))
